Controls "SAUNACONTROL T4" (recessed)

Sauna control for evaporator and sauna heater as well as for 2 VITALlight-IPX4-infrared radiators.

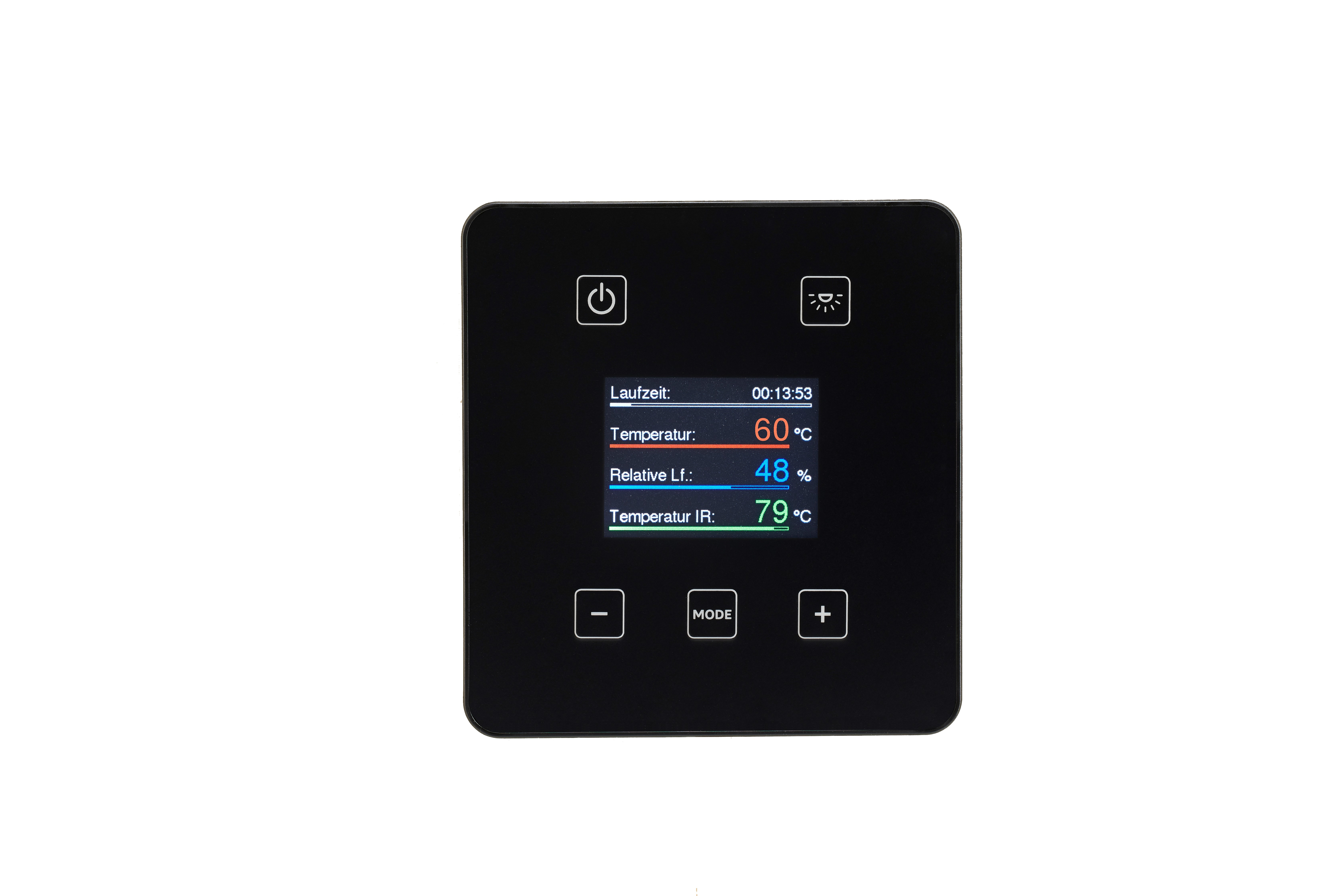

- Operating unit assembly: inside and outside recessed
- Adjustment in the Finnish sauna mode 30 - 110 °C
- Adjustment in humid function 10 - 99 % and 30 - 65 °C
- Evaporator adjustment in % of real rel. humidity
- Supplemental heating programme - 30 min at 80 °C
- Heating time limit adjustable up to 6 (12) h
- Safety temperature limit of 128 °C
- Permanent ventilator function and continued work programmable up to 60 minutes
- Light on/off, 230 V
- Additional 230 V output
- Child safety lock
- Main switch of the device on/off
- Statistics of operating and heating time
- Automatic error detection shown on the LCD display
- Connection via a power extension
- Connection for sauna heater cover protection or door contact switch
- Connection for low water level
- Connection to two infrared radiators with 500 W possible
- Continuous adjustment of the infrared radiators from 100 - 40 % with rotary button
- Optional second VITALlight control
- Simultaneous use of evaporator and sauna heater with VITALlight radiator possible
- Menu navigation in German, English, Italian, French, Dutch
- Remote control with Saunacontrol Web or optional remote start
Power rating: bis 11.0 kW
Operating unit (WxDxH): 135 x 24 x 145 mm
Power unit (WxDxH): 240 x 215 x 60 mm

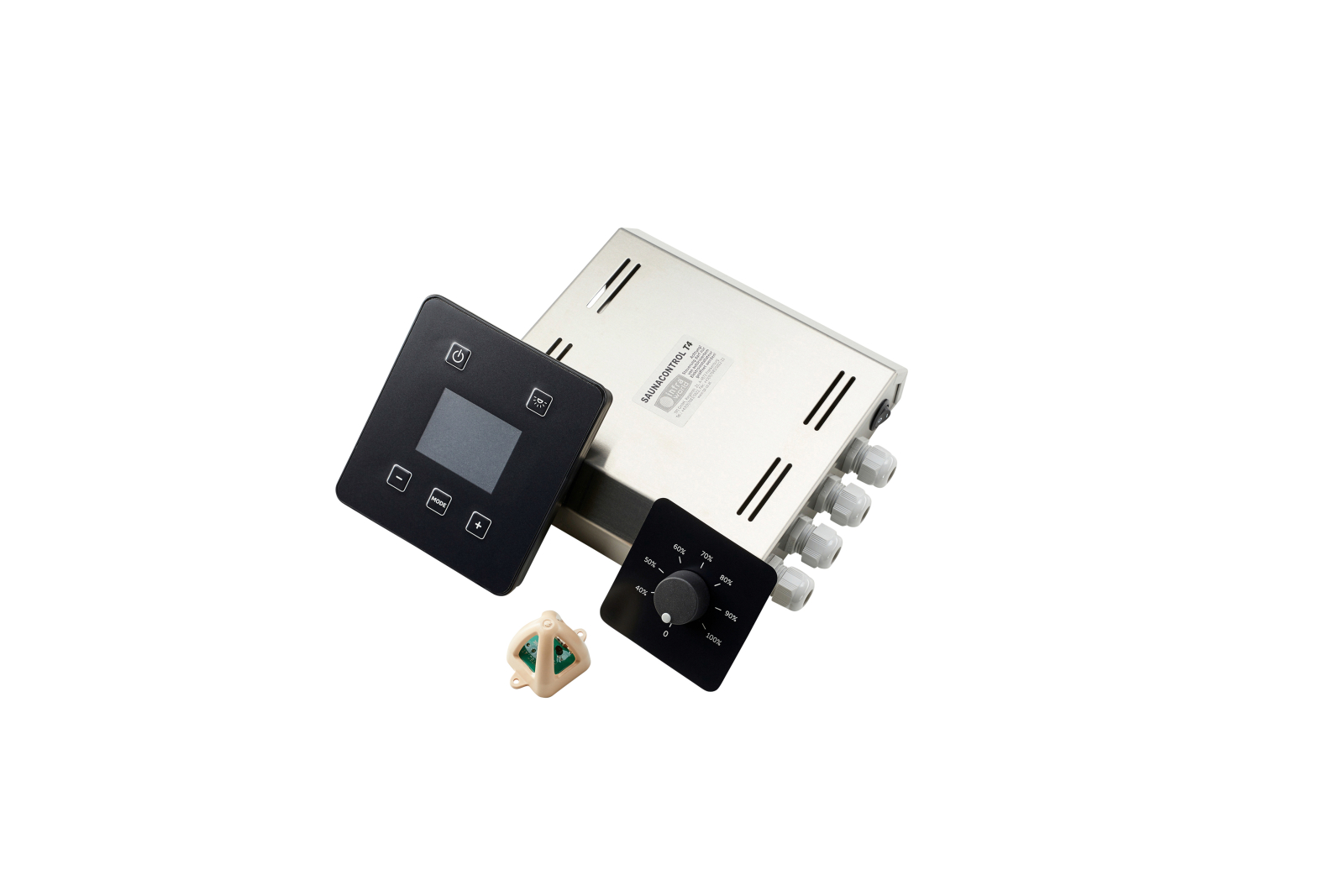

Consisting of: operating unit, control for VITALlight-IPX4-infrared radiator, power unit, temperature & humidity sensor with 3.5 m cable read more read less
